5.3L Natural Gas Engine

5.3L Natural Gas Engine [Natural Gas Engine]:

Specifications of 5.3L Natural Gas Engine
SC5DT160/180Q3   Euro Ⅲ

4CT160/180   Euro Ⅱ
Suitable Applications: medium﹣sized bus and special delivery vehicles
Horsepower Rating: 160~200PS
Technical Parameters of 5.3L Natural Gas Engine [Natural Gas Engine]:
    Euro Ⅲ Euro Ⅱ
Model Unit SC5DT160Q3 SC5DT180Q3 4CT160 4CT180
Fuel   Natural gas CNG
Type   4~Cylinder 4 Stroke, Water cooled
Aspiration   Cold turbocharger/TCI
Bore×Stroke mm×mm 114×130
Total Displacement L 5.3
Compression Ratio   11:1
Rated Power/ Rated Speed Kw/r/min 118/2300 132/2300 118/2300 132/2300
BMEP@Rated Condition kPa 1218 1297 1218 1297
Maximum Thermo Efficiency % 37
Oil Consumption Rate g/kW.h ≦0.3
Maximum Torque/Speed N.m/r/min 580/1500 650/1400~1600 580/1500 650/1400~1600
Noise dB(A) ≦98
Overhaul Interval km ≧400000

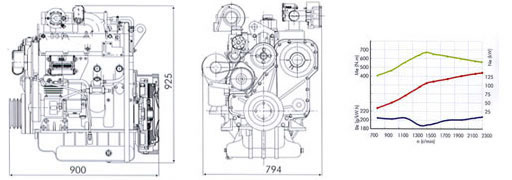

Overall Dimension mm 900(Length)×794(Width)×925(Height)
Weight kg 540
