8.3L Natural Gas Engine

8.3L Natural Gas Engine [ Natural Gas Engine]

Specifications of 8.3L Natural Gas Engine
SC8DT230/250Q3   Euro Ⅲ
T6114ZLQ3/4B   ⅡEuro Ⅱ

Suitable Applications:9~12 meter coach bus and city bus
Horsepower Rating: 210~260PS

Technical Specifications
Model Unit SC8DT215Q3/Q4 SC8DT230Q3/Q4 SC8DT250Q3/Q4
Fuel Compressed Natural Gas/ Liquid Natural Gas (CNG/LNG)
Engine Type 6-Cylinder, 4-Stroke,Water Cooled
Aspiration Type Turbocharged with Intercooler /TCL
Bore/Stroke (Mm) 114/135
Total Displacement L 83
Compression Ratio 11:01
Rated Power/ Rated Speed kw/r/min 158/2200 170/2200 184/2200
Mean Effective Pressure at Rated Condition kpa 1134 1134 1213
Maximum Thermal Efficiency % 37
Lubricating Oil Consumption g/kw.h ≤0.3
Maximum Torque/ Speed Nm/r/min 800/1300-1400 820/1300-1400 920/1300-1400
Noise (Db) dB(A) ≤96
Emissions Regulations EURO Ⅲ/Ⅳ

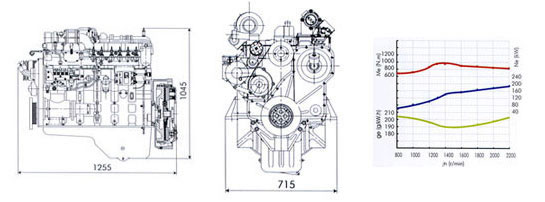

Overall Dimension mm 1345 (L)*715(W)*1075(H)
Weight Kg 650
SDEC, established in 1947, is an experienced manufacturer of Natural gas engines and diesel engines. Due to our years of experience and continuing efforts, we have been awarded ISO9001, QS9000 and TS16949 certification. With the advantage of low vibration levels, less emissions, and low maintenance costs, our natural gas engines and diesel engines are well received by customers in America, Canada, Brazil, Australia, Britain, France, Italy, Russia, India, among others.
If you are looking for engines, look no further. SDEC is your best choice!
Shanghai Diesel Engine
